Nail Strip Standing Seam Panel
Evolution’s Nail Strip panel features a 1" standing seam and is engineered for fast, clean installations. Ideal for both roofing and siding, it delivers architectural aesthetics with the efficiency of a direct-fastened concealed system.
Designed with a slotted nail flange and a locking female leg, this panel removes the need for clips—keeping install costs down while preserving the clean seam appearance. Perfect for both residential and light commercial builds.

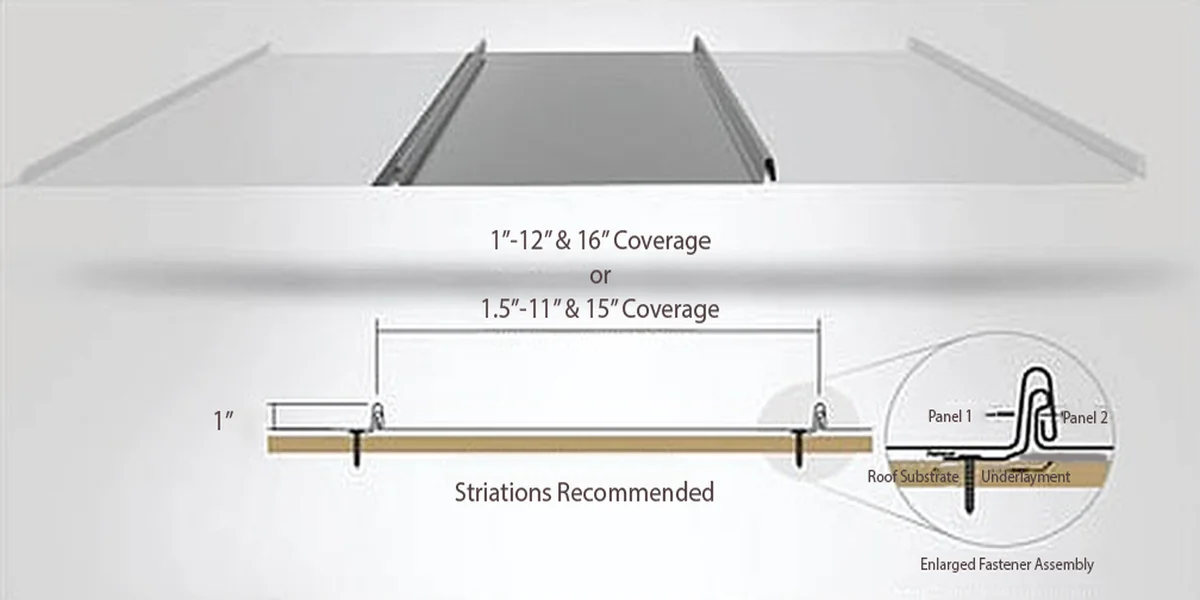

Panel Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 12" & 16" widths |
| Wall Coverage | 12" & 16" widths |
| Panel Gauges | 24 gauge |
| Fastener Type | Direct-Fastened (No Clip Required) |
| Panel Length | 3' to 30'+ |
| Rib Height | 1" |
| Minimum Roof Slope | 3:12 or greater |
| Impact Resistance | UL 2218 |
| Wind Uplift | UL 580 |
| Warranty | Based on Paint System — CMG / United Steel Supply |

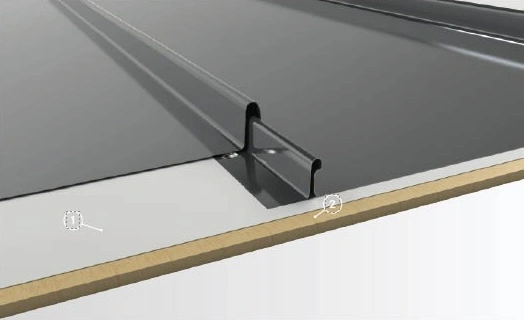

Panel Overlap & Installation Notes
Underlayment:
High-temp Ice & Water Shield recommended beneath panel.
Substrate:
Compatible with plywood or rigid sheathing surfaces.
