Mechanical Lock Standing Seam Panel
Evolution’s Mechanical Lock is a concealed fastener panel engineered for long-span, low-slope roofs. Its interlocking seam and optional floating clip system enable expansion and contraction while maintaining a sleek finish.
This panel is available in 1" and 1.5" rib heights, and can be installed with factory sealants for increased weather resistance. Mechanical Lock standing seam is perfect for commercial and architectural projects needing reliable wind uplift performance and clean lines.

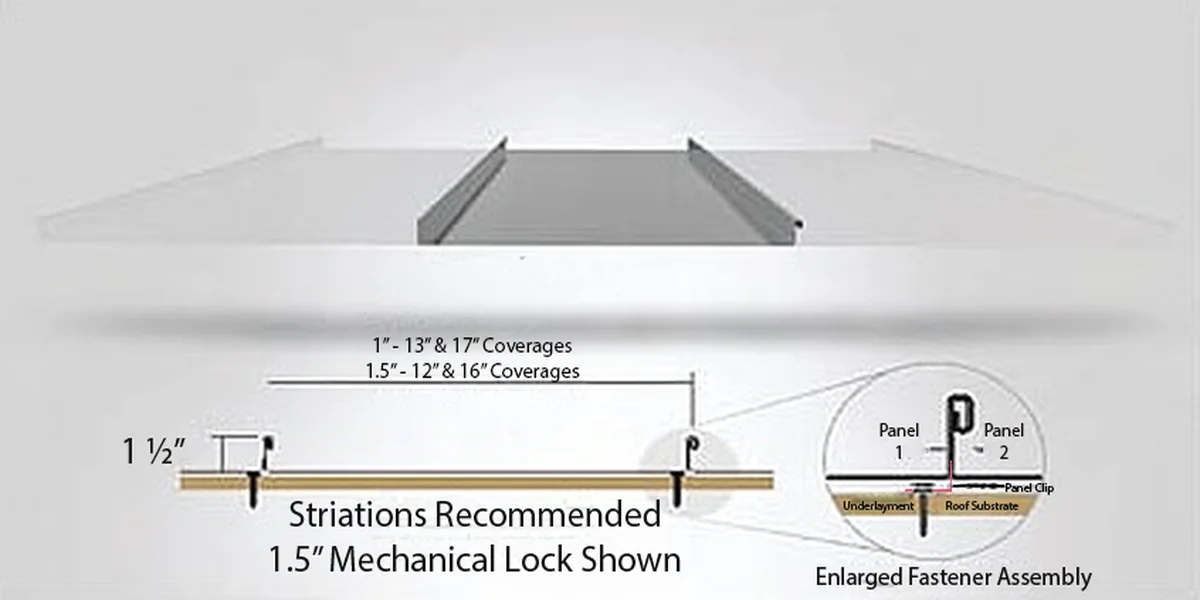

Panel Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 16" or 17" width |
| Radius Panel | Available |
| Panel Gauges | 22, 24 |
| Fastener Type | Concealed Clip, Floating Clip |
| Panel Length |
3' to 43' Shop Production Up to 100' Onsite Roll Forming |
| Rib Height | 1" or 1.5" |
| Minimum Roof Slope | 1:12 with mastic |
| Impact Resistance | UL 2218 |
| Wind Uplift Rating | ASTM E1592 1.5" profile only |
| Warranty | Based on Paint System — CMG / United Steel Supply |

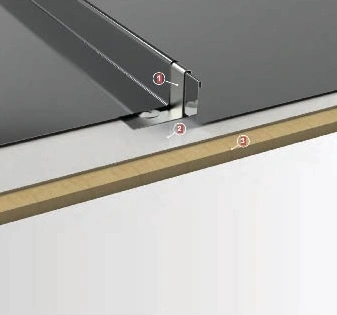

Panel Overlap Details
Clip System:
Shown with fixed clip; floating clip system available for thermal movement.
Underlayment:
High-temp Ice & Water Shield recommended.
Substrate:
Plywood shown; compatible with open framing (up to 60" spans).
