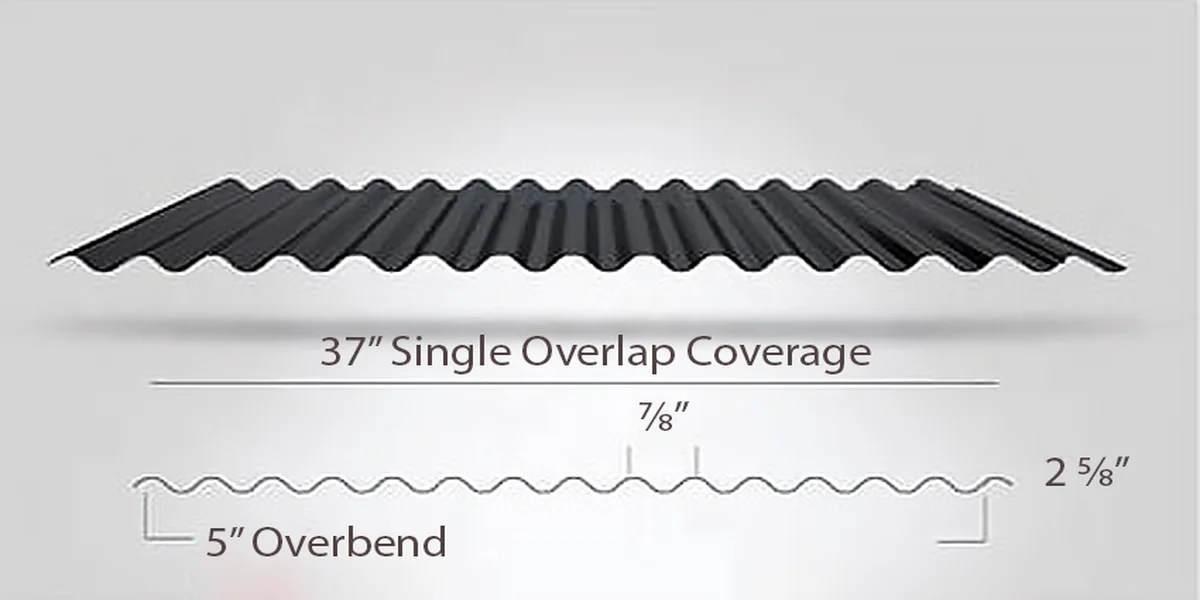

7/8” Corrugated Metal Panel
Evolution Metals’ 7/8" Corrugated Panel delivers maximum strength and visual depth. Designed for both interior and exterior use, it’s a high-performance solution for structural roofing, agricultural siding, and architectural accents. With spans up to 5 feet and rusting A606 steel available, this panel combines performance with bold industrial style.
Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 37” |
| Wall Coverage | 37” |
| Panel Gauges | 22, 24 |
| Panel Grade | 50 |
| Fastener Options | Exposed |
| Panel Length | 3’ to 43’+ |
| Rib Height | 7/8” at 2.67” centers |
| Roof Slope | 1:12 or greater with mastic |
| Impact Rating | UL 2218 |
| Wind Uplift Rating | ASTM 1592 |
| Warranty | Based on Paint System — CMG / United Steel Supply |

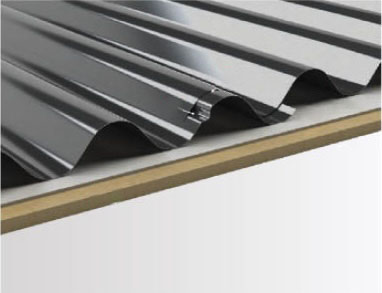

Panel Overlap Construction
Anti-Siphon Groove:
Creates an internal air gap to prevent water penetration at the overlap.
Underlayment:
High Temp Ice & Water shown; ideal for eaves, valleys, and low-slope conditions.
Substrate:
Plywood shown. May be installed over open framing up to 60” spans.
Overlap:
Single overlap with integrated Anti-Siphon feature.
