1/4” Corrugated Metal Panel
With subtle shadow lines and shallow ribs, the 1/4" Corrugated Panel from Evolution Metals is a designer’s dream. Perfect for both residential and commercial use, this low-profile panel excels in exterior siding, interior feature walls, and custom cladding projects. Pair it with wood or industrial accents for a clean, modern look.
Specifications
| Feature | Specification |
|---|---|
| Roof Coverage | 22 3/4” |

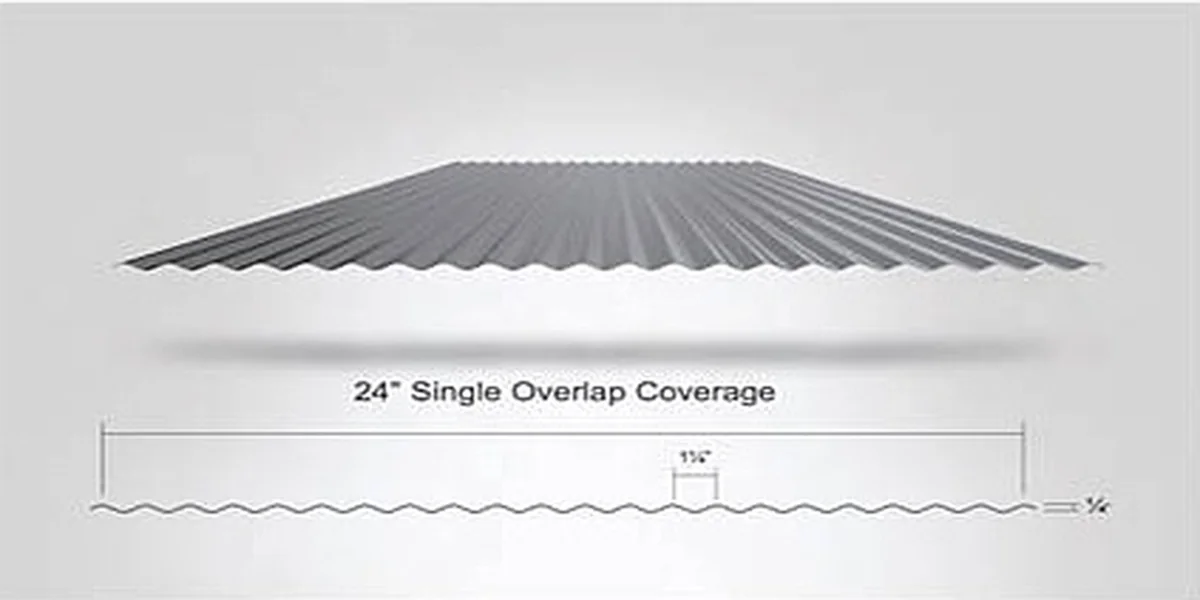

| Wall Coverage | 24” |
| Panel Gauges | 22, 24, 28 |
| Panel Grade | 50 |
| Fastener Options | Exposed |
| Panel Length | 28” to 20’ |
| Rib Height | 1/4” at 1 1/4” centers |
| Roof Slope | 3:12 or greater with mastic |
| Impact Rating | Not Available |
| Wind Uplift Rating | Not Available |
| Warranty | Based on Paint System — CMG / United Steel Supply |

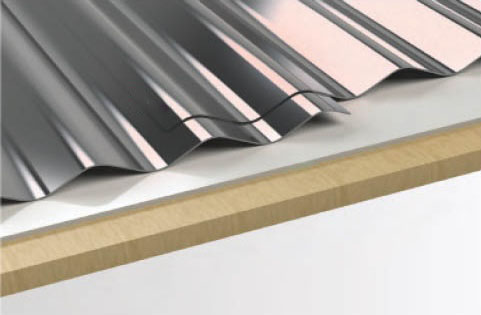

Panel Overlap Construction
Underlayment:
High Temp Ice & Water shown. Recommended for eaves and valleys.
Substrate:
Plywood substrate shown in image above.
Overlap:
Double overlap shown in image. Additional fastening may be required depending on roof pitch.
